Nitrogen Units Skid Mounted

Unit Specifications:

  • Skid-Mounted Self-Contained Liquid Nitrogen Pump and Vaporizer System complete with High Pressure Triplex Pump, Heat Recovery Vaporizing System and All Necessary Instrumentation and Controls for Local Operation.
  • Maximum Working Pressure: 10,000 PSI
  • Hydrostatic Test Pressure: 15,000 PSI
  • Maximum Flow Rate: 180,000 SCFH
  • Fuel Capacity: 100 US Gallons
  • Both Pump and Vaporizer are supplies by a cogenerative diesel power pack, which converts waste engine heat generated by the hydraulics into useful heat for nitrogen vaporization.
  • Training/commission of unit conducted at customer's location

Major Components:

  • Liquid Nitrogen Pump
    • Model GUPD triplex reciprocating cryogenic pump
    • 1.625" Bore Size
    • 1.5" Stroke
    • 10,000 PSI Max Operating Pressure
    • 180,000 SCFH Max Flow Rate
  • Vaporizer
    • Diesel Engine Heat Recovery System designed to convert engine heat and waste system heat into useful heat for Nitrogen vaporization. "POT" type vaporizer.
    • 180,000 SCFH Capacity
    • 10,000 PSI Max Working Pressure
    • 15,000 PSI Hydrostatic Test Pressure
  • Engine as specified by customer
  • Liquid Nitrogen Charge Pump
    • Liquid Nitrogen Centrifugal Pump Model 1½ x 2½ x 6
  • Local operator control panel contains all necessary instruments and controls to ensure safe, efficient and reliable operation

180k Nitrogen Unit Skid Mounted

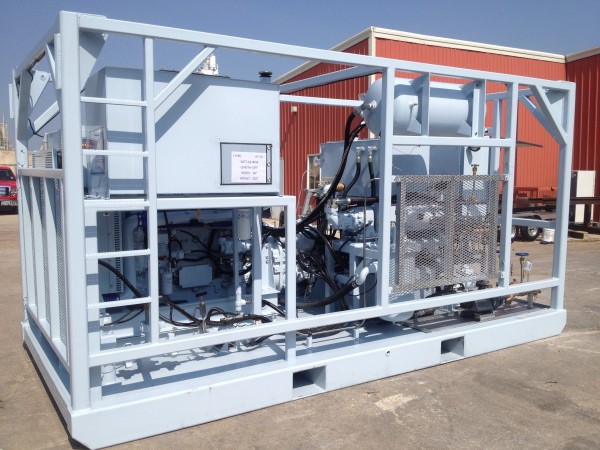

180K Nitogen pump skid with series 60 engine

180k Nitrogen Pump Skid

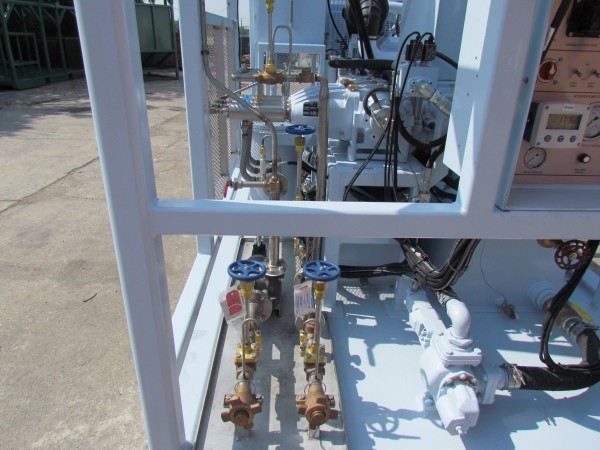

180k Nitrogen Unit With ACD Parts
