Nitrogen Units Skid Mounted

Unit Specifications:

  • Skid-Mounted Self-Contained Liquid Nitrogen Pump and Vaporizer System complete with High Pressure Triplex Pump, Heat Recovery Vaporizing System and All Necessary Instrumentation and Controls for Local Operation.
  • Maximum Working Pressure: 10,000 PSI
  • Hydrostatic Test Pressure: 15,000 PSI
  • Maximum Flow Rate: 180,000 SCFH
  • Fuel Capacity: 100 US Gallons
  • Both Pump and Vaporizer are supplies by a cogenerative diesel power pack, which converts waste engine heat generated by the hydraulics into useful heat for nitrogen vaporization.
  • Training/commission of unit conducted at customer's location

Major Components:

  • Liquid Nitrogen Pump
    • Model GUPD triplex reciprocating cryogenic pump
    • 1.625" Bore Size
    • 1.5" Stroke
    • 10,000 PSI Max Operating Pressure
    • 180,000 SCFH Max Flow Rate
  • Vaporizer
    • Diesel Engine Heat Recovery System designed to convert engine heat and waste system heat into useful heat for Nitrogen vaporization. "POT" type vaporizer.
    • 180,000 SCFH Capacity
    • 10,000 PSI Max Working Pressure
    • 15,000 PSI Hydrostatic Test Pressure
  • Engine as specified by customer
  • Liquid Nitrogen Charge Pump
    • Liquid Nitrogen Centrifugal Pump Model 1½ x 2½ x 6
  • Local operator control panel contains all necessary instruments and controls to ensure safe, efficient and reliable operation

180k Nitrogen Unit Skid Mounted

180K Nitogen pump skid with series 60 engine

180k Nitrogen Pump Skid

180k Nitrogen Unit With ACD Parts

180k Nitrogen Unit Control Panel

Brochure

Nitrogen Units Trailer Mounted

Trailer Mounted Nitrogen Units

Trailer mounted, self-contained and climate controlled nitrogen pumping and vaporizing system. Precise utilizes state of the art component's, quality ensured manufacturing processes.

Precise uses only proven components such as ACD brand triplex, cold ends and liquid nitrogen centrifugal pumps. Manual, electrical and pneumatic valves are utilized. Autoclave and Bu-tech type high pressure 316 & 304 stainless steel lines. 2500 to 3000 gallon liquid nitrogen storage vessel are available

The Precise control panel is sectioned by operating process. Included in all panels are real time pressure and flow data recording with on board job storage and laptop charting. Stainless steel panel with all unit controls. Data Acquisition Systems available upon request.

Training/Commission of units to be conducted at customer location

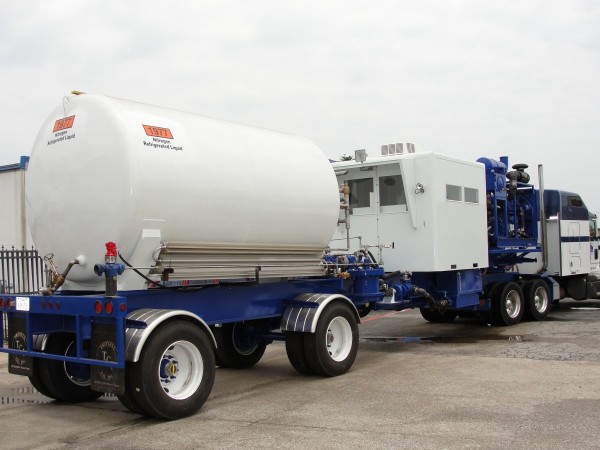

180k Nitrogen Trailer

180k Nitrogen Unit Trailer Mounted

180k Nitrogen Unit Trailer Control Panel

180k Nitrogen Unit Trailer Mounted

180k Nitrogen Unit Trailer Mounted Control Panel

180k Nitrogen Unit Trailer Mounted

Brochure
